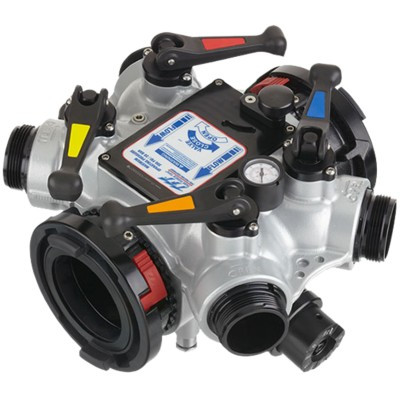

5" Storz to 5" Storz 5-Way Manifold with four 2.5" Male Threaded outlets with slow close



The 5-way manifold is a compact, portable, low friction-loss valve that can be used in many water distribution applications. The hydraulically actuated slide valve combined with four of TFT's 2.5" quarter-turn ball valves with folding handles make for the ultimate in versatility. All four 2.5" valves can be used with or without the LDH valve being open. Valve seats are field replaceable, and quarter-turn folding valve handles require low force to move, even under pressure. The automatic valve lock on the 2.5" valves maintain valve position while flowing at partial openings. Folding handles minimize required storage space. Device includes carrying handle, a pressure gage and optional PRV. A polymer bearing ring helps prevent galvanic corrosion on LDH couplings.

Weight:	50.5 lbs (22.9kg)
Coupling Size Side A:	5 inch (125mm)
Coupling Swiveling/Rigid Side A:	Storz Rigid
Coupling Side Side B:	5 inch (125mm)
Coupling Swiveling/Rigid Side B:	Storz Rigid
Coupling Style Side C1-4:	Male Threads
Coupling Size Side C1-4:	2.5 inch (65mm)
Operation Energy Source:	Manual
Pressure Relief Valve:	Has PRV
Valve Actuation Method:	Tee Handle (aluminum)
Valve Design:	Slide Valve (aluminum)
Water Flow Style:	Manifold
Waterway Size:	4.5 inch (115mm)
Material:	Aluminum
Finish:	Powdercoated Stardust Silver
