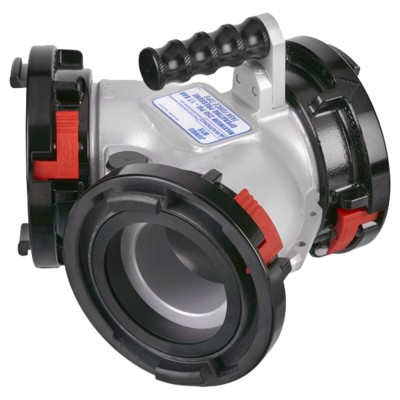

Jumbo Wye



4-5" Storz Swivel Coupling to Two 4-5" Storz Swivel Couplings
AW series, Jumbo Wye, The same construction as the Jumbo Siamese, but without the clapper. Maximum operating pressure for the jumbo wye is 300 psi (20bar). Meets the 900 psi (62bar) hydrostatic strength test. The aluminum castings are hardcoat anodized and powder coat finished inside and out for maximum corrosion protection. Rugged carrying handle included. Three strategically placed legs allow the appliance to sit off the ground even with a 6" Storz on inlet/outlet. Hose couplings are attached using polymer bearing rings, providing electrical isolating to help prevent galvanic corrosion.

AW4	SP-SP	ST-ST
Weight:	18.5 lbs (8.39kg)	18.9 lbs (8.57kg)
Coupling Size Side A:	4 inch (100mm)	5 inch (125mm)
Coupling Style Side A:	Storz	Storz
Coupling Swiveling/Rigid Side A:	Swivel (full time, even after tightening)	Swivel (full time, even after tightening)
Coupling Size Side B:	4 inch (100mm)	5 inch (125mm)
Coupling Style Side B:	Storz	Storz
Coupling Swivel/Rigid Side B:	Swivel (full time, even after tightening)	Swivel (full time, even after tightening)
Water Flow Style:	Wye	Wye
