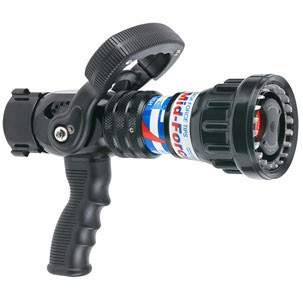

MID-FORCE Dual Pressure Automatic Nozzle with Shutoff and Pistol Grip



The Mid-Force handline nozzle incorporates TFT's unique stainless steel slide valve for turbulence free flow control and includes the exclusive integrated debris screen to prevent stream quality degradation. All models accept low and multi-expansion foam attachment's for increased finished foam performance.

The Mid-Force handline nozzle is available with 100/55 or 75/45 psi dual operational pressure choices to meet any fire ground operational challenge. All models are available with your choice of high strength bonded rubber fog teeth which provide a full filled pattern, or the wide protective pattern of TFT's unique stainless steel spinning teeth design.

• Automatic pressure control with a flow capacity of 70-200 gpm (260-760 l/min)
• Includes flush without shutting down
• Patented slide-type valve for turbulence-free flow control
• Six detent flow positions
• "Gasket Grabber" inlet screen
• Lightweight hardcoat anodized aluminum for maximum resistance to corrosion and wear
• Pistol grip is mounted below the valve
• Nozzle may be switched between standard 100 psi (7 bar) and low pressure
• 1.5" NH (38 mm) swivel rocker lug coupling is standard
• Laser engraved serial number
• Reflective labeling
• Weight: 5.7 lbs

Also available in low pressure version:

• TFT-HMDL-VPGIS
• Same as HMD-VPGI , but operates at lower pressures of approximately 75 psi (5 bar) / 45 psi (3 bar)
• 6.0 lbs

The Mid-Force handline nozzle comes standard with reflective labeling. This dual pressure variable gallonage nozzle series is available in tip only and shut off configurations, is individually serialized, and comes with TFT's exclusive 5 year warranty.

Flow Control	Automatic (constant pressure, variable flow, constant gallonage, flow does not change with pattern)
Flow Rate	70-200 gpm (260-760 l/m)
Coupling Size (Nozzles)	1-1/2" (38 mm)
Coupling Style (Nozzles)	Rocker
Coupling Swiveling/Rigid (Nozzles)	Swivel (full time, even after tightening)
Pressure	100/55 psi (7/5 bar) 75/45 psi (5/3 bar) TFT-HMDL-VPGIS
Nozzle Body	Nozzle with shutoff and pistol grip
Valve Design	Slide Valve (stainless)
Valve Actuation	Horseshoe (injection molded nylon w/colored handle)
Fog Pattern	Stainless steel teeth (fixed)
Nozzle Bumper	Rubber-bonded
