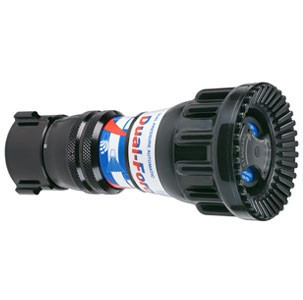

1.5" Dual Force Nozzle, 100/55 psi



The Dual Force Handline nozzle incorporates a unique stainless steel slide valve for turbulence free flow control and an exclusive integrated debris screen to prevent stream quality degradation. All models accept low and multi-expansion foam attachment's for increased finished foam performance.

The full size Dual Force Handline nozzle is available with 100/55psi or 75/45psi operational pressure choices to meet any fire ground operational challenge. The high strength bonded rubber fog teeth provide a full filled pattern that pushes heat flame and smoke ahead and away from the firefighting team.

• Automatic pressure control with a flow capacity of 95-300 gpm (360-1150 l/min)
• Includes flush without shutting down
• Molded rubber teeth for full-fill "power fog"
• "Gasket Grabber"
• Turbulence-free flow control
• Lightweight hardcoat anodized aluminum materials for maximum resistance to corrosion and wear
• 1.5" NH (38mm) rigid rocker lug coupling is standard
• Tip does not shut off and must be used with a separate valve or valved playpipe
• Laser engraved serial number
• Reflective labeling
• Nozzle may be switched between standard 100 psi (7 bar) and low pressure
• Weight: 5.0 lbs (2.267 kg)

Available in a Low Pressure version: TFT-HDL-TO

• Pressure 75 & 45 psi (5 & 3 bar)
• Nozzle may be switched between standard 75 psi (5 bar)/45 psi (3 bar) and low pressure

The full size Dual Force Handline nozzle comes standard with reflective labeling. This dual pressure variable gallonage nozzle series is available in tip only, shut off, and playpipe configurations, is individually serialized, and comes with TFT?s exclusive 5 year warranty.

Flow Control	Automatic (constant pressure, variable flow, constant gallonage, flow does not change with pattern)
Flow Rate	95-300 gpm (360-1150 l/min) 95-250 gpm (360-950 l/m) TFT-HDL-TO
Coupling Size (Nozzles)	1-1/2" (38 mm)
Coupling Style (Nozzles)	Rocker
Coupling Swiveling/Rigid (Nozzles)	Rigid
Pressure	55 & 100 psi (3 & 7 bar) 45 & 75 psi (3 & 5 bar) TFT-HDL-TO
Nozzle Body	Tip with no shutoff
Valve Design	No valve
Valve Actuation	None
Fog Pattern	Molded Rubber Teeth (fixed)
Nozzle Bumper	Rubber - bonded
Certifications	N/A
