1"NH Quadrafog Series

The 10-60 gpm QuadraFog is an excellent choice for any 1" hose line. With it's optional colored pistol grip and handle covers (NFPA 1901A. 16.9.1). the compact QuadraFog is an economical and lightweight, selectable gallonage, combination pattern nozzle. The uniquely cut fixed metal fog teeth produce a wide range of patterns from straight stream to narrow fog to extremely wide fog. This series accepts either the FJ-DQ low-expansion or the FJ-MC-DQ FoamJet multi-expansion aspirating attachMen's.

	DQ40	DQS40P

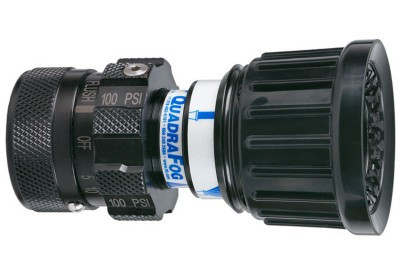

	QuadraFog Tip	QuadraFog Nozzle & Pistol Grip
Weight:	1.1 lbs (0.5kg)	3.1 lbs (1.4kg)
Flow Control Method:	Selectable flow at a pressure (constant gallonage, flow does not change with pattern)	Selectable flow at a pressure (constant gallonage, flow does not change with pattern)
Flow Rate:	5 & 10 & 24 & 40 gpm (20 & 40 & 100 & 150 l/min)	5 & 10 & 24 & 40 gpm (20 & 40 & 100 & 150 l/min)
Coupling Size (Nozzles):	1 inch (25mm)	1 inch (25mm)
Coupling Style (Nozzles):	Knurled (diamond pattern)	Rocker
Coupling Swiveling/Rigid (Nozzles):	Rigid	Swivel (non-full time, no swivel after tightening)
Pressure:	100 psi (7 bar)	100 psi (7 bar)
Nozzle Body Style:	Tip with shutoff	Nozzle with shutoff and pistol grip
Valve Design:	Twist Style (baffle shutoff)	Ball Valve (stainless)
Valve Actuation Method:	Rotational	Horseshoe (injection molded nylon with colored handle)
Fog Pattern Method:	Cut metal teeth (fixed)	Cut metal teeth (fixed)
Nozzle Bumper Material:	Rubber - press fit	Rubber - press fit
