Task Force Tips

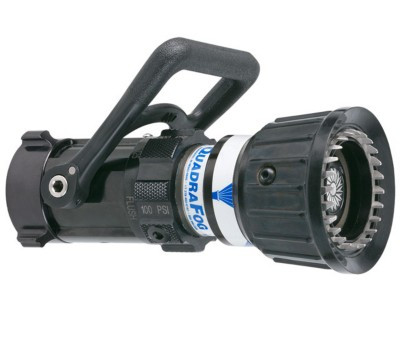

TFT Legacy #FQS125PF 1.5" QuadraFog Nozzle with Pistol Grip - 30-125 GPM @ 100 PSI
$1,382.00
Task Force Tips
TFT Legacy #FQS125F 1.5" QuadraFog Nozzle - 30-125 GPM @ 100 PSI
$1,596.00
1.5" QuadraFog Series
The 30-125 gpm QuadraFog is designed for 1.5 inch hose lines. The compact QuadraFog is a rugged and dependable, NFPA compliant, selectable gallonage nozzle. All 1.5 inch QuadraFog nozzles accept either the FJ-LX-FQ foamjet low-expansion or the FJ-MX-FQ foamjet multi-expansion foam aspiration attachment's and come with fog teeth.
| FQS | 125S | 125LF |
| Weight: | 3.3 lbs (1.5kg) | 3.4 lbs (1.54kg) |
| Flow Control Method: | Selectable flow at a pressure (constant gallonage, flow does not change with pattern) | Selectable flow at a pressure (constant gallonage, flow does not change with pattern) |
| Flow Rate: | 30 & 60 & 95 & 125 gpm (110 & 230 & 360 & 470 l/min) | 30 & 60 & 95 & 125 gpm (110 & 230 & 360 & 470 l/min) |
| Coupling Size (Nozzles): | 1.5 inch (38mm) | 1.5 inch (38mm) |
| Coupling Style (Nozzles): | Rocker | Rocker |
| Coupling Swiveling/Rigid (Nozzles): | Swivel (non-full time, no swivel after tightening) | Swivel (non-full time, no swivel after tightening) |
| Pressure: | 100 psi (7bar) | 75 psi (5bar) |
| Nozzle Body Style: | Nozzle with shutoff | Nozzle with shutoff |
| Valve Design: | Ball valve (stainless) | Ball valve (stainless) |
| Valve Actuation Method: | Horseshoe (injection molded nylon with colored handle) | Horseshoe (injection molded nylon with colored handle) |
| Fog Pattern Method: | stainless steel teeth (spinning) | Cut metal teeth (fixed) |
| Nozzle Bumper Material: | Rubber - bonded | Rubber -press fit |
| Certification | NFPA/FM | NFPA/FM |
Current stock:
0
SKU: FQS125F
