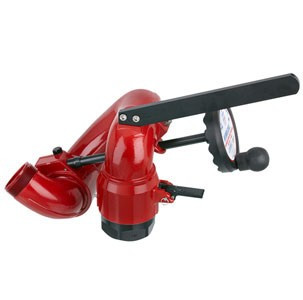

The most rugged, most advanced design for an industrial monitor ever.



The large 3.25" (83mm) waterway will deliver up to 1250 gpm (4500 l/min). Only eleven (11) turns of the handwheel are necessary to change from vertical to the horizontal elevation setting. A built-in automatic drain protects the monitor from freezing. 2.5" male NH (65mm) outlet threads are standard. 2.5" male BSP (65mm) threads available on request. NOTE: The riser must be supported to safely withstand a nozzle reaction force of up to 900 lbs (408kg). (1250 gpm at 175 psi)(4500 l/min @ 12 bar).

Weight: 18.200 lbs (8.255 kg)

The monitor is constructed from hardcoat anodized aluminum with a red powder coat internal and external finish. The monitor has the ability to horizontally rotate 360 degrees using a tiller bar, and includes a lever action 1/4 turn rotation locking device that securely holds the device in position and is designed so that the status of the lock can be visually checked. Vertical adjustment is controlled through a handwheel with stainless steel worm gear requiring eleven turns to move from a horizontal to vertical water stream flow. Elevation travel of 135 degrees from 90 degrees above to 45 degrees below horizontal. Grease fittings are located on all pivot points for durability and ease of maintenance and a threaded port is provided for a pressure gauge. The monitor has an automatic drain valve.

The monitor has a 3" female NPT inlet and 2-1/2" male NH outlet threads and is capable of flowing 1250 GPM and has a maximum operating pressure of 175 PSI. The unit is covered by a five-year warranty.

Monitor Configuration	Fixed Mount
Flow Rate - Monitors	0-1250 gpm (0-4500 l/m)
Operational Energy Source	Manual
Monitor Inlet	3" NPT Female
Monitor Outlet	2.5" (65 mm)
Horizontal Control	Tiller Bar with Lever Action Rotational Lock
Horizontal Movement	Continuous 360?
Vertical Control	Handwheel (6? injection molded nylon)
Vertical Movement	90 below to 90 above horizontal
Safety Shutoff	No Safety Shutoff
Pressure Relief Valve	No PRV
Valve Design	No Valve
Finish	Powder Coated American Red
Certifications	FM
