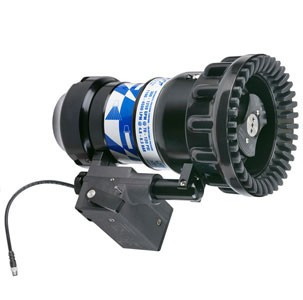

The electric drive unit develops over 400 pounds of torque, is enclosed in a waterproof cast aluminum housing and includes a manual override device in the event the power source fails. The unit is compatible with 12 or 24 volt power systems and requires no more than a 3 amp power draw and includes a 24" connection cable. A waterproof six-pin electrical connection for use with TFT remote control monitors is included.

The nozzle stream shaper actuator has a position encoder for smooth transition between straight stream and fog pattern with fine stream adjustment.

The nozzle and actuator is constructed from hardcoat anodized aluminum alloy for corrosion resistance and durability and includes a protective rubber bumper with fog teeth, laser engraved serial number, and reflective labeling.

Operation Energy Source	Electric (12/24 vdc)
Electrical Connection Method	Plug (with smart stream technology)
Flow Control Method	Automatic (constant pressure, variable flow, constant gallonage, flow does not change with pattern)
Flow Rate	300-2000 gpm (1100-8000 l/min)
Coupling Size (Nozzles)	3.5 inch (89mm)
Coupling Style (Nozzles)	Rocker
Coupling Swiveling/Rigid (Nozzles)	Swivel (non-full time, no swivel after tightening)
Pressure	80-120 psi (5.5-8.3 bar)
Nozzle Body Style	Tip Only - Remote Controlled
Valve Design	No Valve
Valve Actuation Method	No Actuation Method
Fog Pattern Method	Molded Rubber Teeth (fixed)
Nozzle Bumper Material	Rubber - press fit
Certifications	N/A
Hazardous Location Certification	N/A
