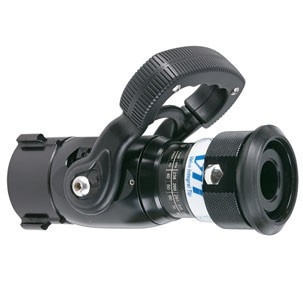

The Valve Integral Tip (VIT) series is available in two distinct models. The original model offers the flexibility of individual smooth bore inserts that can be easily changed to match the fire department operational guidelines, but lacks the integrated stream straightener and thread protection of the new style. Shorter and somewhat lighter, the original model often was used with a separate stream straightener to enhance the stream quality at low operating pressures. Inserts included with the package are 7/8", 15/16", 1", 1-1/8". Also for those using CAFS, often no insert is used to provide a full 1-3/8" waterway.

The VIT Series uses a full 1-3/8" waterway and is controlled by TFT's unique detent bail shutoff allows a level of nozzle operator control. The new style of VIT incorporates a retractable rubber-bumpered thread protector that can be easily rotated to allow for either a combination nozzle connection, or for complete protection of the male outlet threads.

The VIT series are available with color-coded bail handles and pistol grips. The new style of VIT incorporates a longer tapered smooth bore for increased stream performance, and integrated stream straightener keeps the overall package compact and lightweight, making them especially ideal for high rise operations. All VIT models come standard with TFT exclusive 24 hour service guarantee and 5 year warranty.

Specifications:

Nozzle Body	Nozzle with shutoff
Coupling Size Side A	1-1/2? (38 mm)
Coupling Style Side A	Rocker
Coupling Swiveling/Rigid Side A	Swivel (full time, even after tightening)
Coupling Size Side B	1-1/2? (38 mm)
Coupling Style Side B	Male threads
Coupling Swiveling/Rigid Side B	Rigid
Retractable Thread Protector	Yes

Available Orifice sizes:
