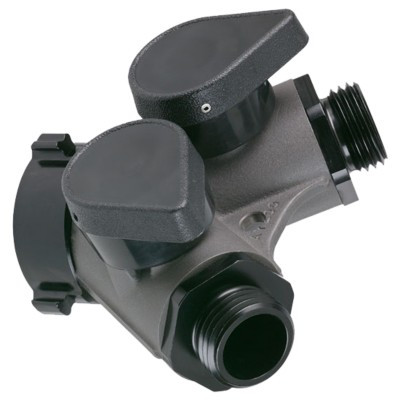

Short Handled Gated Forestry WYE Outlet



The Forestry Gated WYE has a cast aluminum body with 1" (25mm) ball type valves and short or long nylon valve handles. Hardcoat anodized finish. Inlet and outlet threads are 1.5"NH connections. Pressure tested to 1000 psi (70bar) and is 5" (12.7cm) long by 5.5" (14cm) wide, excluding handles.

Weight:	2.1 lbs
Water Flow Style:	Gated Wye
Coupling Size Side A:	1.5 inch (38mm)
Coupling Style Side A:	Rocker
Coupling Swiveling / Rigid Side A:	Swivel (non-full time, no swivel after tightening)
Coupling Size Side B:	1.5 inch (38mm)
Coupling Style Side B:	Male Threads
Coupling Swiveling / Rigid Side B:	Rigid
Valve Design:	Ball Valve (nylon)
Valve Actuation Method:	Lever (2.5 inch injection molded nylon)
