Task Force Tips

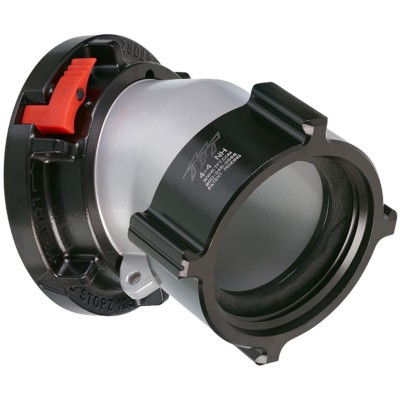

TFT #AH3SP-NJ 2.5" RLF Swivel x 4" Storz Adapter with 30 Degree Elbow
$714.00
AH Series Elbow
4" Rigid Storz to 2.5-5" Female NH Swivel Rocker Lug
AH Series elbow, made of lightweight material. Cast to a 30-degree down angle to relieve weight of the hose when connected. Maximum operating pressure is 300 psi (20bar). Meets 900 psi (62 bar) hydrostatic strength test. All elbows are hardcoat anozied and powder coated for maximum corrosion protection. Hose couplings are attached using polymer bearing rings, which provide electrical isolation to help prevent galvanic corrosion.
AH Series elbow, made of lightweight material. Cast to a 30-degree down angle to relieve weight of the hose when connected. Maximum operating pressure is 300 psi (20bar). Meets 900 psi (62 bar) hydrostatic strength test. All elbows are hardcoat anozied and powder coated for maximum corrosion protection. Hose couplings are attached using polymer bearing rings, which provide electrical isolation to help prevent galvanic corrosion.
| AH3SP- | NJ | NL | NP | NT |
| Weight: | 4.75 lbs (2.16kg) | 6.37 lbs (2.889kg) | 8.3 lbs (3.76kg) | 8.3 lbs (3.76kg) |
| Water Flow Style: | Elbow | Elbow | Elbow | Elbow |
| Coupling Size Side A: | 2.5 inch (65mm) | 3 inch(76mm) | 4 inch (100mm) | 5 inch (125mm) |
| Coupling Style Side A: | Rocker | Rocker | Rocker | Rocker |
| Coupling Swiveling / Rigid Side A: | Swivel (non-full time, no swivel after tightening) | Swivel(non-full time, no swivel after tightening) | Swivel (non-full time, no swivel after tightening) | Swivel (non-full time, no swivel after tightening) |
| Coupling Size Side B: | 4 inch (100mm) | 4 inch(100mm) | 4 inch (100mm) | 4 inch (100mm) |
| Coupling Style Side B: | Storz | Storz | Storz | Storz |
| Coupling Swiveling / Rigid Side B: | Rigid | Rigid | Rigid | Rigid |
Current stock:
0
SKU: AH3SP-NJ
