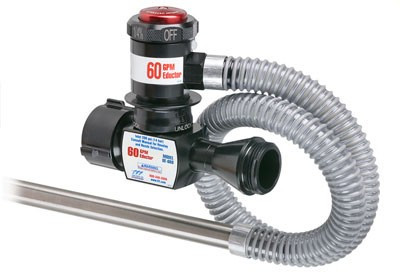

Inline Foam Eductor



The portable in line foam eductor is constructed of corrosion resistant, hardcoat anodized aluminum alloy with stainless steel components. The foam concentrate pickup tube is 36" in length and constructed of 1" inside diameter, reinforced transparent tubing attached to a stainless steel wand. A back flush push button control is provided for fast cleaning of the unit and all controls are designed for use with gloved hands. Quick Release Locker Ring allows eductor body to be detached from the metering head for easy storage. The unit is covered by a five-year warranty.

• 60 gpm, 95 gpm (TFT-UE-095-NF) or 125 gpm (TDT-UE-125-NF)
• 1.5" female X 1.5" male w/36" Hose .25% .5% 1% 3% 6%
• Large, easy-to-change, and simple-to-read injection rate metering head indicators allow for accurate mixing
• Weight: 4.5 lbs

The device is calibrated to proportion Class A or B foams in the following percentages: 0.25%, 0.50%, 1.0%, 3.0%, and 6.0%

The eductor is configured with a 1-1/2" female NH swivel coupling and 1-1/2" male NH coupling and is rated for a 60 GPM foam solution discharge. Maximum allowable back pressure is 130 psi (9 Bar).

Also available:

• 95 gpm TFT-UE-095-NF
• 125 gpm TDT-UE-125-NF

Flow Rate	60 gpm (227 l/min) 95 gpm (360 l/min) TFT-UE-095-NF 125 gpm (475 l/min) TDT-UE-125-NF
Coupling Size Side A	1.5" (38 mm)
Coupling Style Side A	Rocker
Coupling Swivel/Rigid Side A	Swivel (full time, even after tightening)
Coupling Size Side B	1.5" (38 mm)
Coupling Style Side B	Male Threads
Coupling Swivel/Rigid Side B	Rigid
Hose Coupling Size	N/A
Pressure	200 psi (14 bar)
