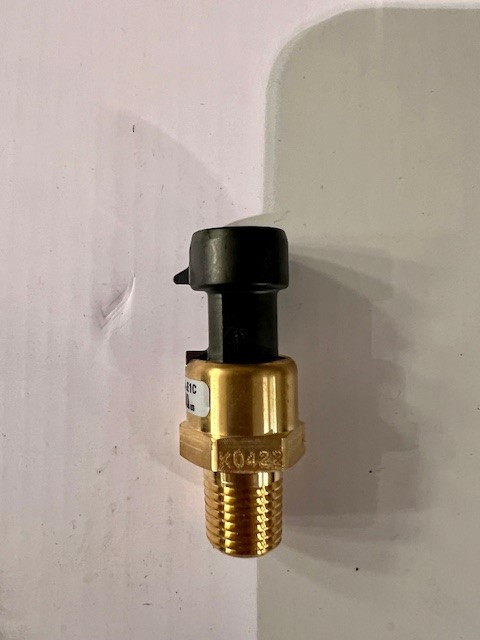

Class 1 #200-00092 Transducer 300 PSI 0-5V (For Pressure Governor)
$476.00
Overview
Standard pressure range sensor for pressure governors.
Features
The 300 PSI pressure sensor incorporates the latest generation ceramic capacitive sense element, state-of-the-art ASIC, and built-in Metri-Pack 150 series sealed connector. Tighten with standard 3/4" open end wrench.
- Applications:
- Fire OEMs, Firefighting - Airport (ARFF), Firefighting - Industrial, Firefighting - Structural, Firefighting - Wildland Forestry
-
Pressure range
- 0 to 300 PSI (absolute reference)
Proof pressure
- 600 PSI
Burst pressure
- 1500 PSI
Pressure connection external threads
- 1/4-18 NPT
Operating supply voltage range
- +5 VDC (+/- 0.5 VDC)
Signal output voltage range
- 0.5 VDC @ 0 PSIA
- 4.5 VDC @ 300 PSIA
Operational temperature range
- -40ºC…+125ºC
Material
- Housing - brass
- Connector - black Valox
Current stock:
0
SKU: 200-00092
