TFT Legacy #DS1024BCP 1" Bubble Cup Nozzle with Pistol Grip - Dual Gallonage 10 and 24 GPM @ 100 PSI

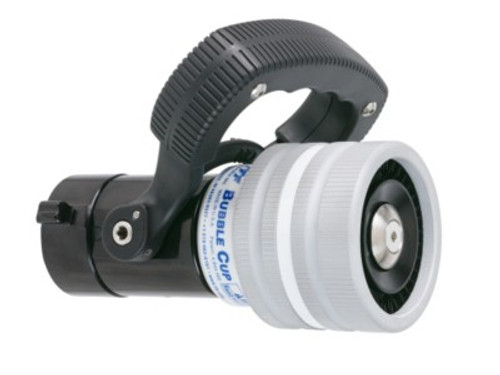

The Bubble Cup, 1" (25mm) series, is a unique combination pattern nozzle capable of producing aspirated foam, conventional straight stream and a wide fog pattern.
GEORGIA SALES ONLY
When the outer sleeve is in the retracted position, the nozzle operates as a standard dual gallonage straight stream/combination nozzle. (See Twister series.) To use the aspirating feature of the nozzle, the nozzle operator slides the outer sleeve forward, and by adjusting the pattern, has control of reach and aspiration. If an immediate wide fog pattern is needed, the sleeve can be retracted instantly to its regular position. The Bubble Cup, with its optional colored pistol grip and handle covers (NFPA 1901 (A.16.9.1), is a versatile nozzle with an extra measure of versatility not found in any other aspirating foam nozzle.

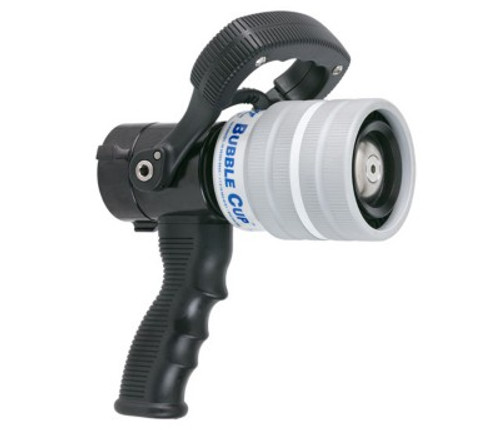

DS1024BCP BUBBLE CUP W/GRIP 1" NH (25mm) - Dual gallonage Bubble Cup nozzle with two flow settings of 10 and 24 gpm @ 100 psi (37 and 90 l/min @ 7 bar). All lightweight materials, hardcoat anodized aluminum. Quick-change rear valve seat, stainless steel shut-off ball and a twist off position for positive shut off. Pistol grip is mounted below the valve. Rocker lug 1" NH (25mm) swivel is standard.
2.0 lb. ( 0.9 kg)
6.37 "- 8.37"
( 16.2 -21.3cm)
