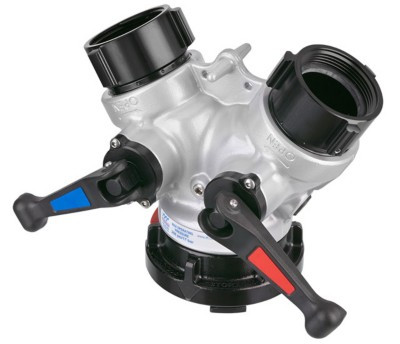

TFT Legacy #AY9ST-NJ 5" Storz x (2) 2.5" Female Gated Siamese

( 0 Reviews )

2.5" Gated Siamese Valve


TFT's 2.5 inch Gated Siamese is a lightweight wye with a full 2.5 inch waterway. Maximum operating pressure of 300 psi (20bar) from either side of the valve. Field replaceable valve seats. Low force quarter turn folding valve handles to move the valve even when under pressure. Valve has an automatic lock that keeps valve position while flowing at partial openings. Pipe threaded ports for pressure gauge and bleed valve. Cast with carrying handle and holes for cap tether attachment. Aluminum casting is hardcoat anodized with a powder caot finish inside and out for maximum corrosion protection.
Weight: 13.7 lbs (6.21kg)
Water Flow Style: Gated Siamese
Coupling Size Side A: 5 inch (100mm)
Coupling Style Side A: Storz
Coupling Swiveling/Rigid Side A: Swivel (full time, even after tightening)
Coupling Size Side B: 2.5 inch (65mm)
Coupling Style Side B: Rocker
Coupling Swiveling Rigid Side B: Swivel (non-full time, no swivel after tightening)
Finish Powder Coat
